A pipe davit with a future maximum load capacity of five thousand pounds mounts to a six-inch extra-strong steel pipe supported by a structural steel beam. The pipe passes through a concrete slab on metal deck and connects via a Grade 50 base plate measuring one and one-quarter inches by twelve inches by one foot zero inches. A half-inch stiffener plate welds to the supporting beam and plate with five-sixteenths inch fillet welds on three sides. A Grade 50 top plate measuring seven-eighths inch by ten and three-quarters inches by seven and one-half inches secures the upper pipe assembly. The supporting beam connects to the main framing via a full-depth beam-to-beam connection per typical details.

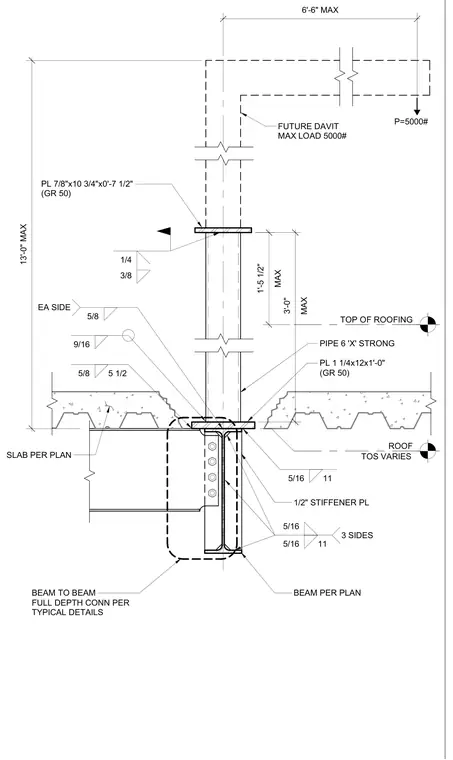

TOS VARIES ROOF P=5000# FUTURE DAVIT MAX LOAD 5000# PIPE 6 'X' STRONG PL 1 1/4x12x1'-0" (GR 50) BEAM PER PLAN BEAM TO BEAM FULL DEPTH CONN PER TYPICAL DETAILS PL 7/8"x10 3/4"x0'-7 1/2" (GR 50) 6'-6" MAX MAX 3'-0" 1/4 3/8 5/16 11 1/2" STIFFENER PL 5/16 11 5/16 3 SIDES 9/16 5/8 5 1/2 5/8 EA SIDE SLAB PER PLAN TOP OF ROOFING MAX 1'-5 1/2" 13'-0" MAX
