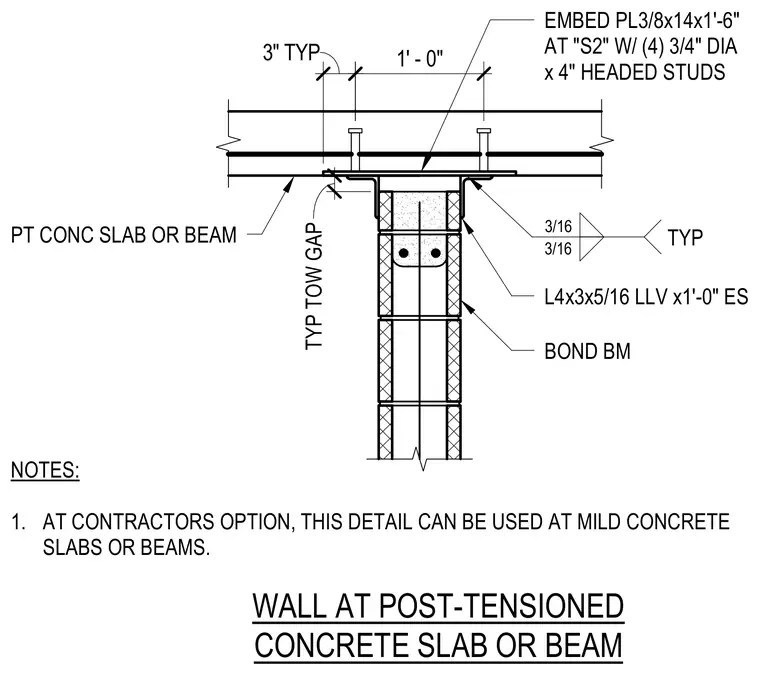

An embed plate measuring three-eighths by fourteen by eighteen inches is cast into the post-tensioned concrete slab or beam with four three-quarter-inch diameter by four-inch headed studs. Structural steel angles measuring L4x3x5/16 long leg vertical by one foot zero inches each side connect the masonry bond beam to the overhead embed. A typical top-of-wall gap is maintained, and three-sixteenth-inch fillet welds secure the connection. At the contractor's option, this detail can be used at mild reinforced concrete slabs or beams.
L4x3x5/16 LLV x1'-0" ES BOND BM EMBED PL3/8x14x1'-6" AT "S2" W/ (4) 3/4" DIA x 4" HEADED STUDS WALL AT POST-TENSIONED CONCRETE SLAB OR BEAM 3" TYP TYP 3/16 3/16 1 1/2" PT CONC SLAB OR BEAM TYP TOW GAP NOTES: 1. AT CONTRACTORS OPTION, THIS DETAIL CAN BE USED AT MILD CONCRETE SLABS OR BEAMS. 1' - 0"
