A concrete ramp landing pad interfaces with a concrete slab on grade over a concrete vertical support element. Three-quarter inch diameter by two feet long smooth dowels spaced at eighteen inches on center are embedded below an angle. The concrete ramp and landing pad dimensions and locations are sized per plan. The adjacent concrete slab on grade bears on the continuous concrete support.

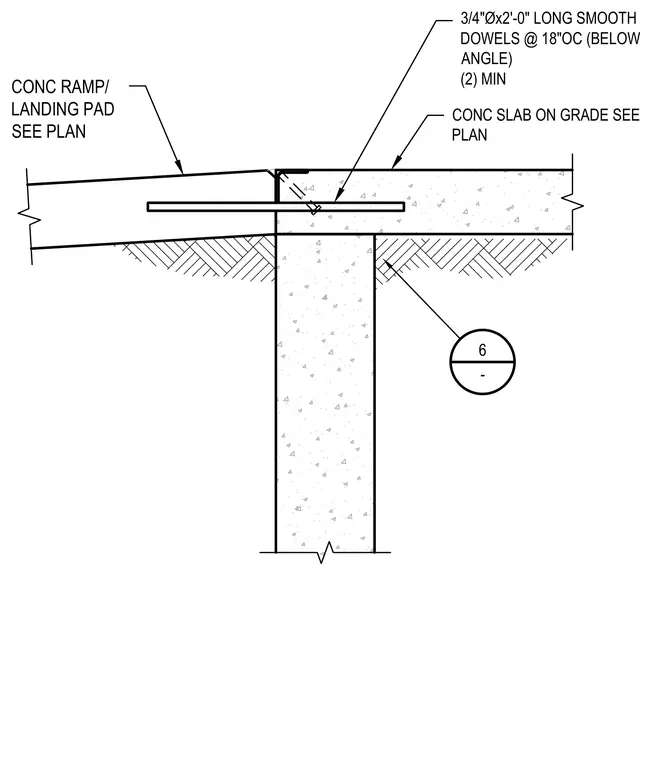

CONC RAMP/ LANDING PAD SEE PLAN CONC SLAB ON GRADE SEE PLAN 6 - 3/4"Øx2'-0" LONG SMOOTH DOWELS @ 18"OC (BELOW ANGLE) (2) MIN
