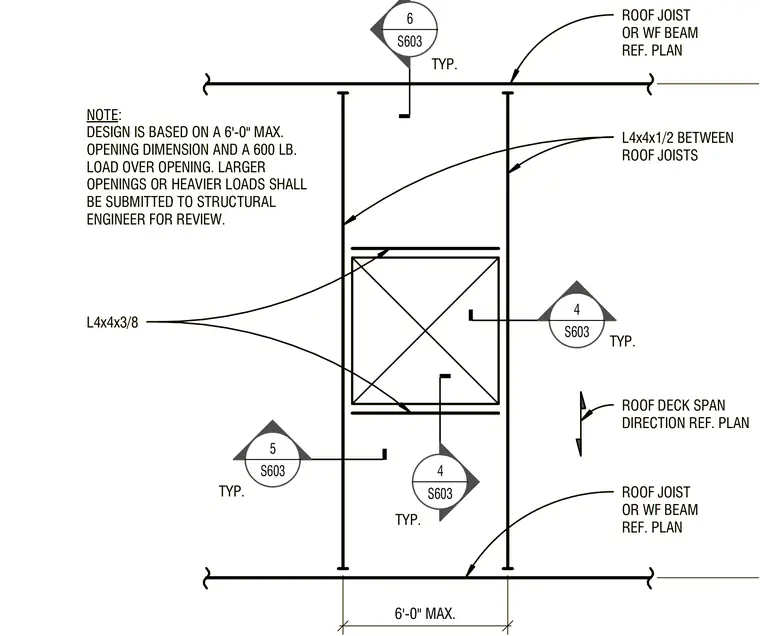

This structural detail shows framing for a roof deck opening supported by roof joists or wide flange beams. The design is based on a six-foot maximum opening dimension and a six-hundred-pound load over the opening. L4x4x3/8 and L4x4x1/2 structural angles are placed between the roof joists typically around the perimeter. Larger openings or heavier loads require submission to the structural engineer for review.
ROOF JOIST OR WF BEAM REF. PLAN ROOF JOIST OR WF BEAM REF. PLAN 6'-0" MAX. NOTE: DESIGN IS BASED ON A 6'-0" MAX. OPENING DIMENSION AND A 600 LB. LOAD OVER OPENING. LARGER OPENINGS OR HEAVIER LOADS SHALL BE SUBMITTED TO STRUCTURAL ENGINEER FOR REVIEW. L4x4x3/8 L4x4x1/2 BETWEEN ROOF JOISTS TYP. TYP. TYP. TYP. ROOF DECK SPAN DIRECTION REF. PLAN 6 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ 4 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ 4 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ 5 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ ROOF JOIST OR WF BEAM REF. PLAN ROOF JOIST OR WF BEAM REF. PLAN 6'-0" MAX. NOTE: DESIGN IS BASED ON A 6'-0" MAX. OPENING DIMENSION AND A 600 LB. LOAD OVER OPENING. LARGER OPENINGS OR HEAVIER LOADS SHALL BE SUBMITTED TO STRUCTURAL ENGINEER FOR REVIEW. L4x4x3/8 L4x4x1/2 BETWEEN ROOF JOISTS TYP. TYP. TYP. TYP. ROOF DECK SPAN DIRECTION REF. PLAN 6 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ 4 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ 4 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ 5 S603 ________________________________________________________________________________________________________________________________________________________________________________________________ _______
