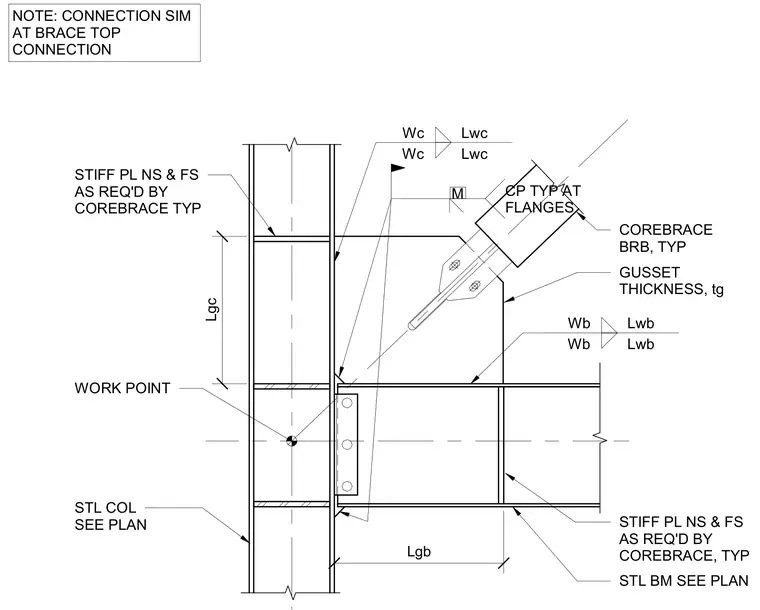

A CoreBrace buckling-restrained brace connects to a structural steel column and steel beam framing intersection using a gusset plate. Stiffener plates are provided near side and far side on the column and beam flanges as required by the manufacturer. Welds secure the gusset plate to the column and beam flanges, with complete joint penetration welds specified at the flange connections. A work point is established at the intersection of the member centerlines, and the connection is typical at the brace top.
CP TYP AT FLANGES STIFF PL NS & FS AS REQ'D BY COREBRACE TYP COREBRACE BRB, TYP Wc Lwc Wc Lwc Wb Lwb Wb Lwb GUSSET THICKNESS, tg STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP STL BM SEE PLAN WORK POINT STL COL SEE PLAN Lgb Lgc NOTE: CONNECTION SIM AT BRACE TOP CONNECTION M
