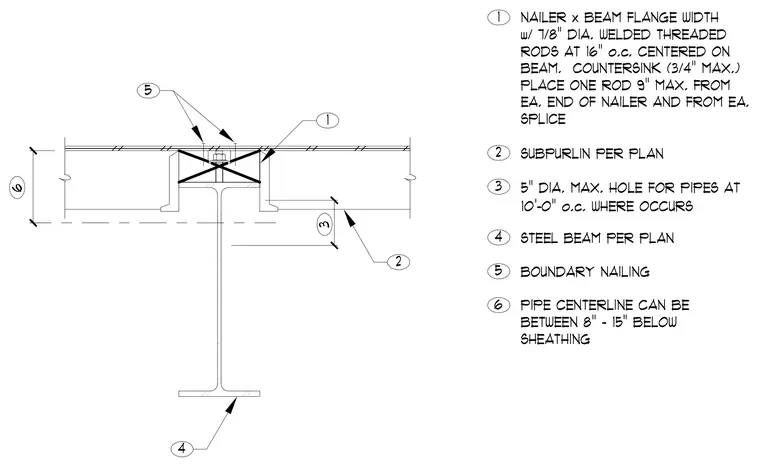

A wood nailer matching the steel beam flange width is secured using seven-eighth-inch diameter welded threaded rods spaced at sixteen inches on center centered on the beam with a maximum three-quarter-inch countersink. Threaded rods are placed a maximum of nine inches from each end of the nailer and from each splice. Subpurlins per plan flank the assembly, and a steel beam per plan provides structural support beneath. Boundary nailing secures the sheathing. Pipe penetration provisions include up to five-inch diameter maximum holes for pipes at ten feet on center where required, with the pipe centerline located between eight and fifteen inches below the sheathing.
4 2 1 5 6 3 6 SHEATHING BETWEEN 8" - 15" BELOW PIPE CENTERLINE CAN BE 5 BOUNDARY NAILING 1 2 3 4 STEEL BEAM PER PLAN 5" DIA. MAX. HOLE FOR PIPES AT 10'-0" o.c. WHERE OCCURS SUBPURLIN PER PLAN SPLICE EA. END OF NAILER AND FROM EA. PLACE ONE ROD 9" MAX. FROM BEAM. COUNTERSINK (3/4" MAX.) RODS AT 16" o.c. CENTERED ON w/ 7/8" DIA. WELDED THREADED NAILER x BEAM FLANGE WIDTH
