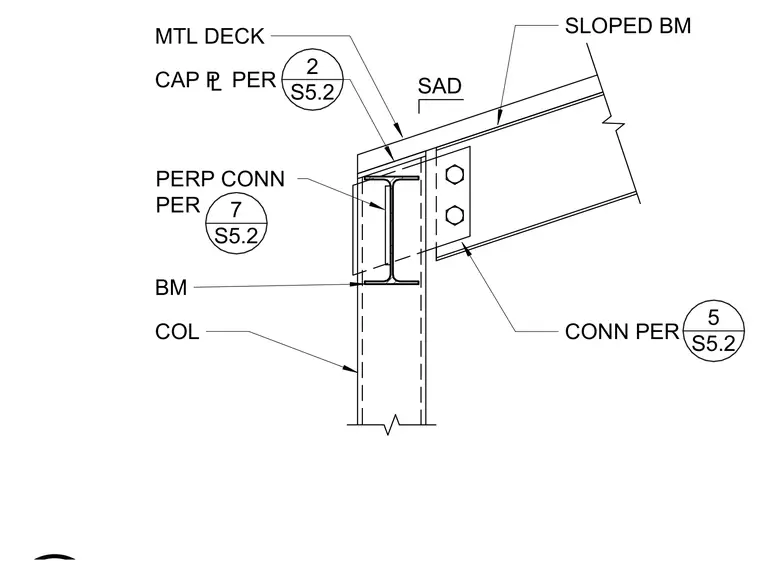

A sloped beam connects to the column with a bolted connection detailed per sheet references. A cap plate bears atop the support, with a perpendicular connection framing the assembly. Metal deck spans across the top of the structural members. Additional connection details are referenced on sheet S5.2.
5 S5.2 CONN PER SLOPED BM CAP £ PER 2 S5.2 COL SAD BM PERP CONN PER 7 S5.2 MTL DECK
