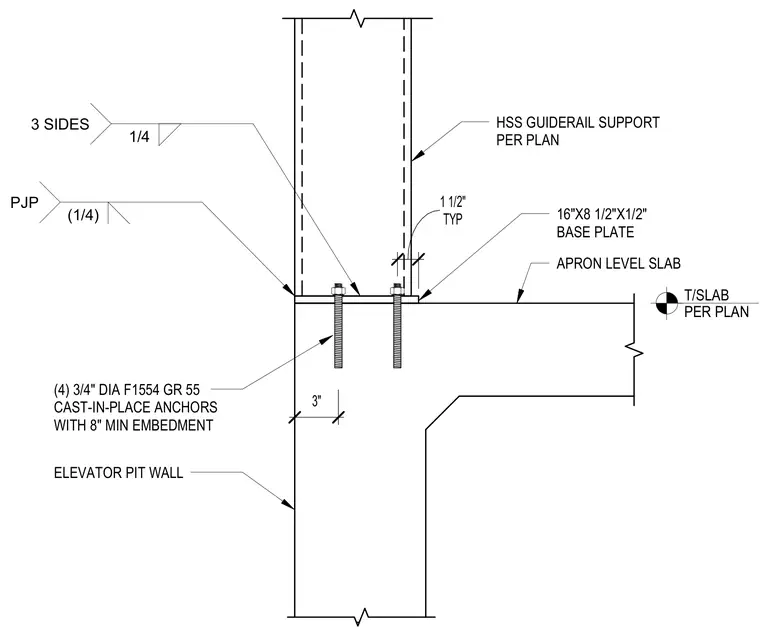

An HSS guiderail support bears on a sixteen-inch by eight-and-a-half-inch by half-inch base plate positioned atop an elevator pit wall and apron level slab. The base plate is secured with four three-quarter-inch diameter ASTM F1554 Grade 55 cast-in-place anchors with eight-inch minimum embedment into the concrete wall. A quarter-inch partial joint penetration weld is specified on three sides of the connection, with a quarter-inch fillet weld indicated typically. The top of the slab is located per plan.
1/4 3 SIDES HSS GUIDERAIL SUPPORT PER PLAN 16"X8 1/2"X1/2" BASE PLATE (4) 3/4" DIA F1554 GR 55 CAST-IN-PLACE ANCHORS WITH 8" MIN EMBEDMENT APRON LEVEL SLAB ELEVATOR PIT WALL (1/4) PJP 3" TYP 1 1/2" T/SLAB PER PLAN
