Horizontal Truss Connection at Steel Beam and Column Joint

Elements

Connections

About this detail

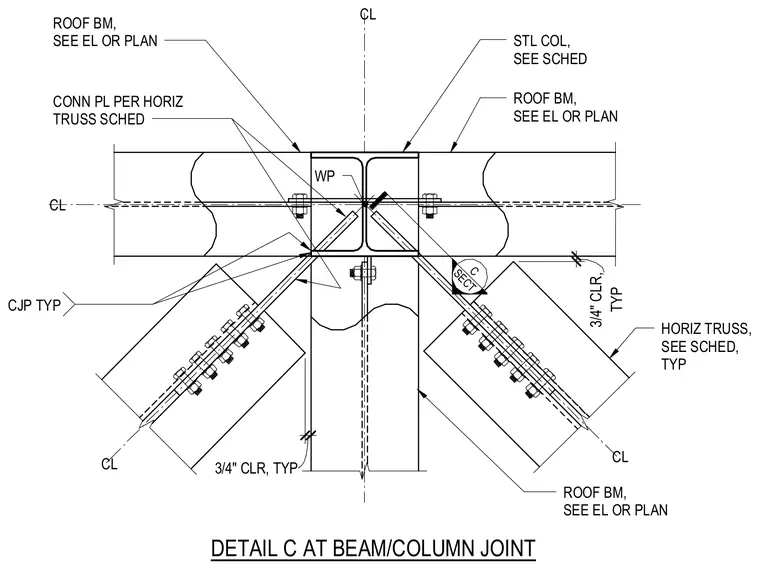

Horizontal trusses connect to a steel column and continuous roof beams using connection plates sized per the horizontal truss schedule. The diagonal members of the horizontal truss feature complete joint penetration welds typically at the intersections and maintain a typical three-quarter inch clearance. Gusset and connection plates are bolted and welded at the column centerline working point.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
