Structural · S-6PMH3

Column Tie Configurations and Reinforcement Details

Materials

anchor

Elements

Columns Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

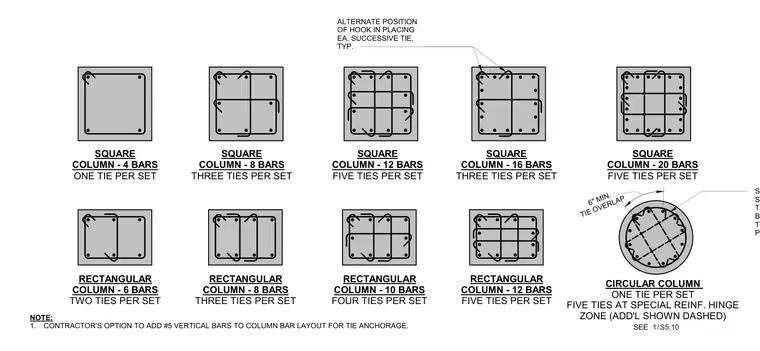

Standard transverse tie arrangements and longitudinal bar configurations are provided for square, rectangular, and circular concrete columns. Square and rectangular columns feature varying tie counts ranging from one to five sets per level, with standard hooks engaging longitudinal bars and staggered around the perimeter for each successive tie. Circular columns feature spiral or circular tie details with a six-inch minimum tie overlap. Alternate hook positions are specified for placing each successive tie, and standard hooks are detailed to engage longitudinal reinforcement. An optional contractor note permits the addition of number five vertical bars to the column bar layout specifically for tie anchorage.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
