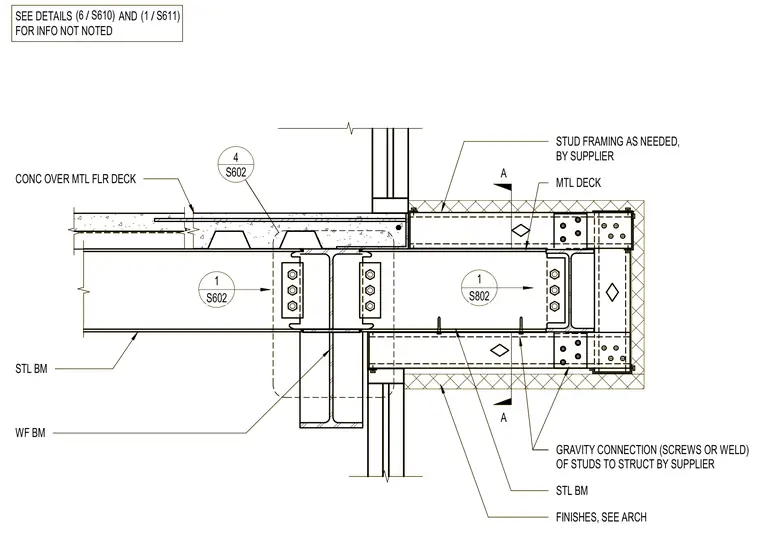

Concrete slab over metal floor deck bears on wide flange steel beams connected with bolted shear tabs. Stud framing is provided as needed by the supplier, with gravity connections utilizing screws or welds from studs to the structural steel. Additional architectural finishes and construction details are coordinated per architectural drawings.
A A CONC OVER MTL FLR DECK STL BM WF BM STL BM SEE DETAILS AND FOR INFO NOT NOTED / (1 S611) 1 S602 1 S802 S602 4 / (6 S610) FINISHES, SEE ARCH GRAVITY CONNECTION (SCREWS OR WELD) OF STUDS TO STRUCT BY SUPPLIER STUD FRAMING AS NEEDED, BY SUPPLIER MTL DECK A A CONC OVER MTL FLR DECK STL BM WF BM STL BM SEE DETAILS AND FOR INFO NOT NOTED / (1 S611) 1 S602 1 S802 S602 4 / (6 S610) FINISHES, SEE ARCH GRAVITY CONNECTION (SCREWS OR WELD) OF STUDS TO STRUCT BY SUPPLIER STUD FRAMING AS NEEDED, BY SUPPLIER MTL DECK
