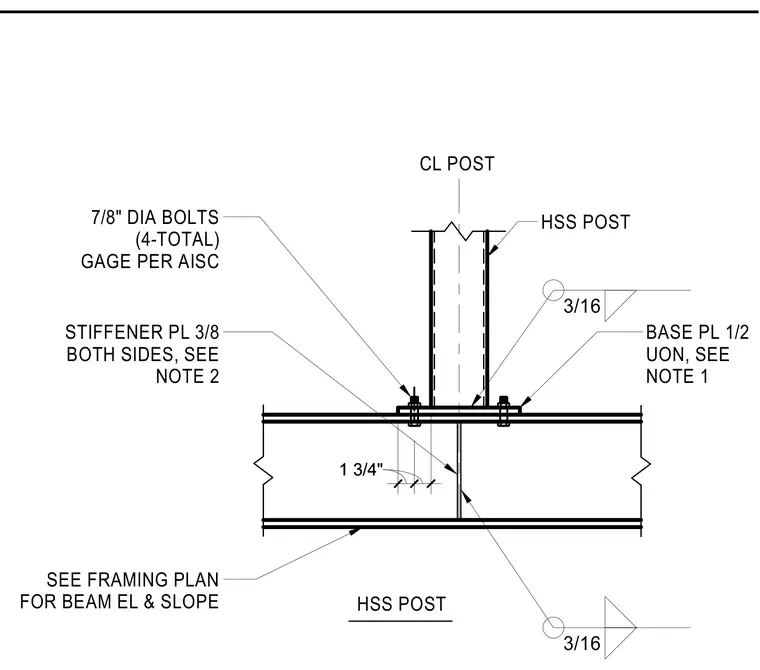

An HSS post connects to a wide flange beam using a 1/2-inch base plate welded with a 3/16-inch fillet weld unless otherwise noted. Four 7/8-inch diameter bolts secure the connection with a gauge per AISC standards. Three-eighths-inch stiffener plates are welded to both sides of the web. Beam elevation and slope are sized per the framing plan.
HSS POST CL POST 1 3/4" 1 3/4" HSS POST 3/16 SEE FRAMING PLAN FOR BEAM EL & SLOPE 7/8" DIA BOLTS (4-TOTAL) GAGE PER AISC STIFFENER PL 3/8 BOTH SIDES, SEE NOTE 2 BASE PL 1/2 UON, SEE NOTE 1 3/16
