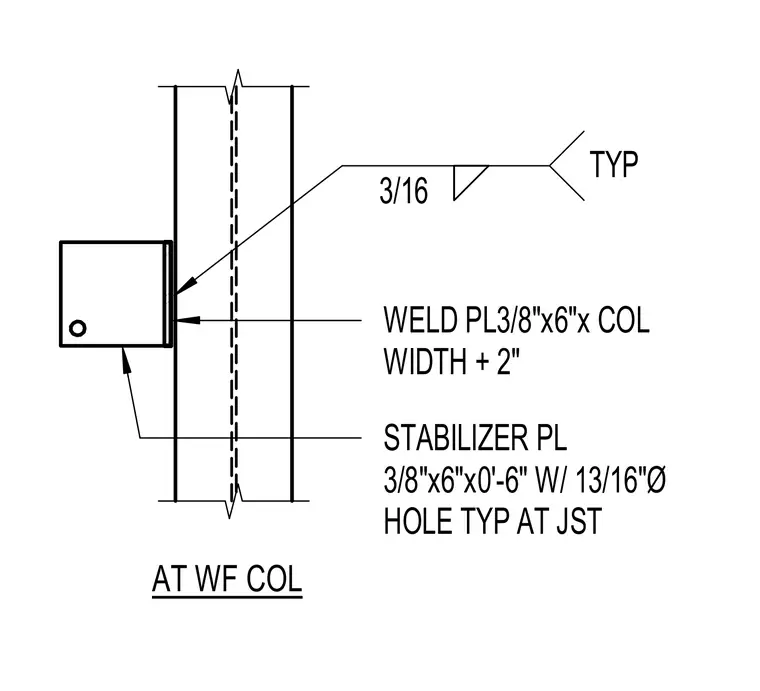

A stabilizer plate measuring three-eighths by six inches by zero feet six inches with a thirteen-sixteenths-inch diameter hole is welded to a wide flange column flange using a three-sixteenth-inch fillet weld typically at joists. The stabilizer plate spans the column width plus two inches.
AT WF COL WELD PL3/8"x6"x COL WIDTH + 2" STABILIZER PL 3/8"x6"x0'-6" W/ 13/16"Ø HOLE TYP AT JST 3/16 TYP
