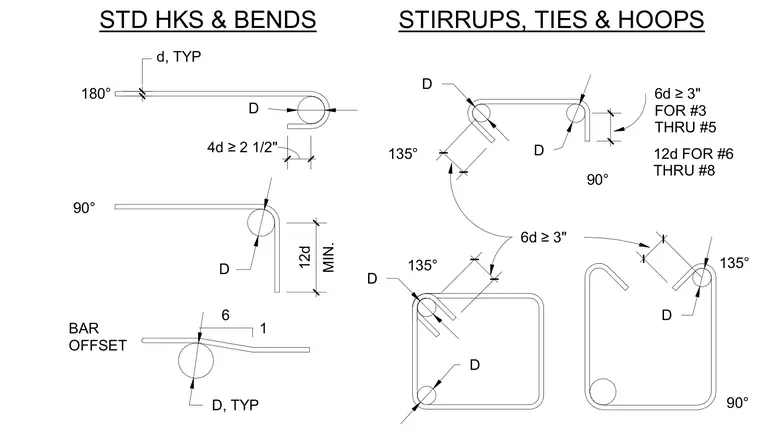

Standard hooks and bends feature 180-degree hooks with a bend diameter D and extension of 4d or at least 2 1/2 inches, as well as 90-degree bends with a minimum extension of 12d. Stirrups, ties, and hoops utilize 135-degree and 90-degree bends with extension lengths specified as 6d or at least 3 inches for number 3 through number 5 bars, and 12d for number 6 through number 8 bars. Bar offsets maintain slope ratios with diameter D typical at bend locations.
BAR OFFSET 90° 180° 135° D 6d ≥3" D D, TYP 6 1 D D 6d ≥3" FOR #3 THRU #5 12d FOR #6 THRU #8 135° D D 135° 90° d, TYP 90° STIRRUPS, TIES & HOOPS STD HKS & BENDS D MIN. 12d 4d ≥ 2 1/2"
