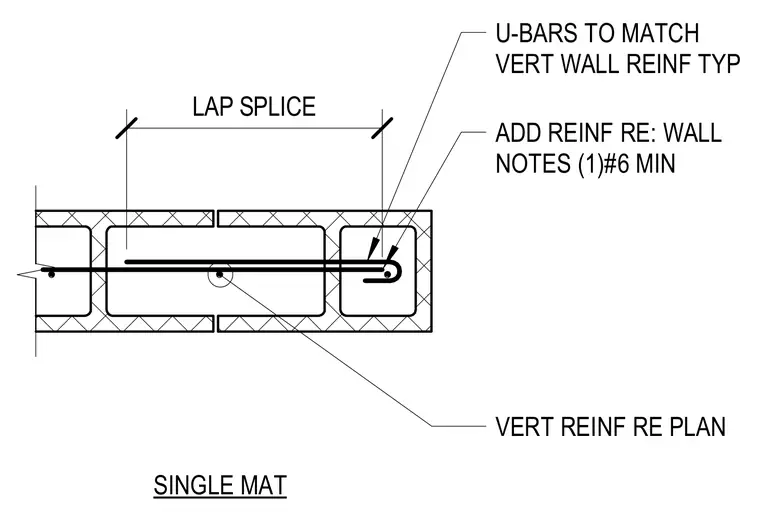

Vertical reinforcement layout at a concrete wall jamb or end. A single mat of vertical reinforcement is anchored with U-bars matching the typical vertical wall reinforcement size. Additional reinforcement is provided per the wall notes with a minimum number six lap splice.
SINGLE MAT U-BARS TO MATCH VERT WALL REINF TYP VERT REINF RE PLAN ADD REINF RE: WALL NOTES (1)#6 MIN LAP SPLICE
