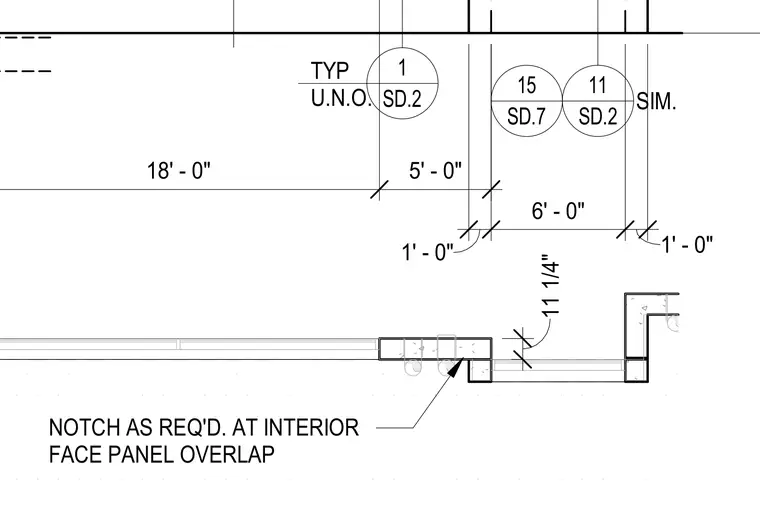

An interior panel overlap configuration requires a notch as indicated. Dimensions locate the panel overlap and interior face alignment relative to adjacent gridlines.
TYP U.N.O. 1 SD.2 11 SD.2 15 SD.7 5' - 0" 18' - 0" 1' - 0" 6' - 0" 1' - 0" SIM. 11 1/4" NOTCH AS REQ'D. AT INTERIOR FACE PANEL OVERLAP
