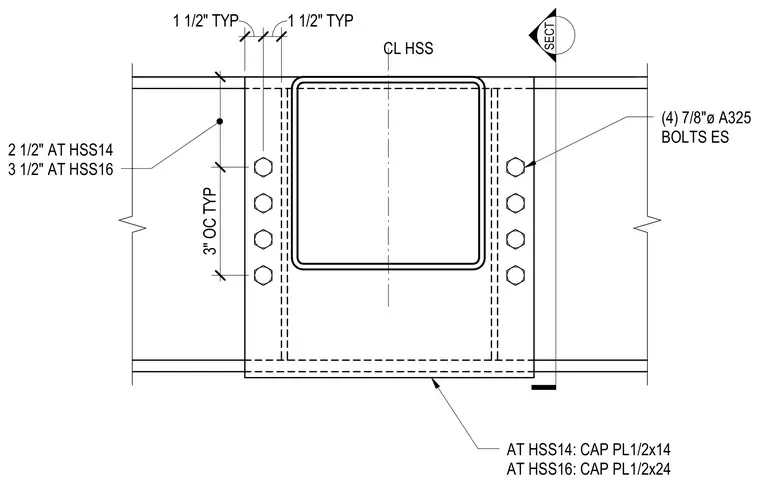

An HSS column connects to a cap plate utilizing four 7/8-inch diameter A325 bolts on each side. The assembly features a 1/2-inch thick cap plate sized 14 inches for HSS14 columns or 24 inches for HSS16 columns. Bolt spacing is detailed at 3 inches on center typically, with edge distances measuring 2 1/2 inches for HSS14 and 3 1/2 inches for HSS16.
SECT CL HSS 3" OC TYP 1 1/2" TYP 1 1/2" TYP AT HSS14: CAP PL1/2x14 AT HSS16: CAP PL1/2x24 (4) 7/8"ø A325 BOLTS ES 2 1/2" AT HSS14 3 1/2" AT HSS16
