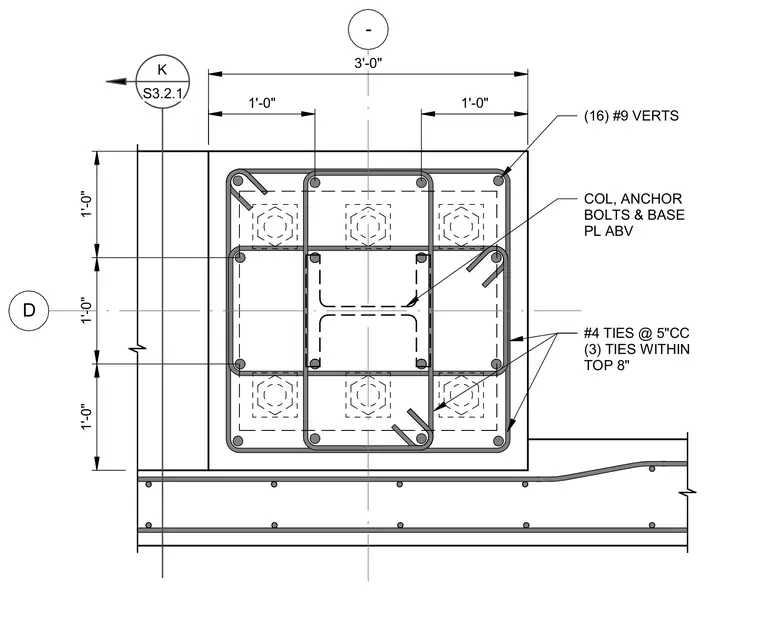

A reinforced concrete pedestal supports a steel column base plate and anchor bolts as specified on sheet S3.2.1. The pedestal reinforcement consists of sixteen number 9 vertical bars enclosed by number 4 ties spaced at 5 inches on center. Three additional ties are provided within the top 8 inches of the column pedestal.
1'-0" 1'-0" 1'-0" 1'-0" D - 1'-0" 3'-0" (16) #9 VERTS #4 TIES @ 5"CC (3) TIES WITHIN TOP 8" COL, ANCHOR BOLTS & BASE PL ABV K S3.2.1
