Structural · S-6NYZM

Post-Tensioned Concrete Beam Section at Column

Materials

Elements

Columns Beams Floors / Slabs Reinforcing

About this detail

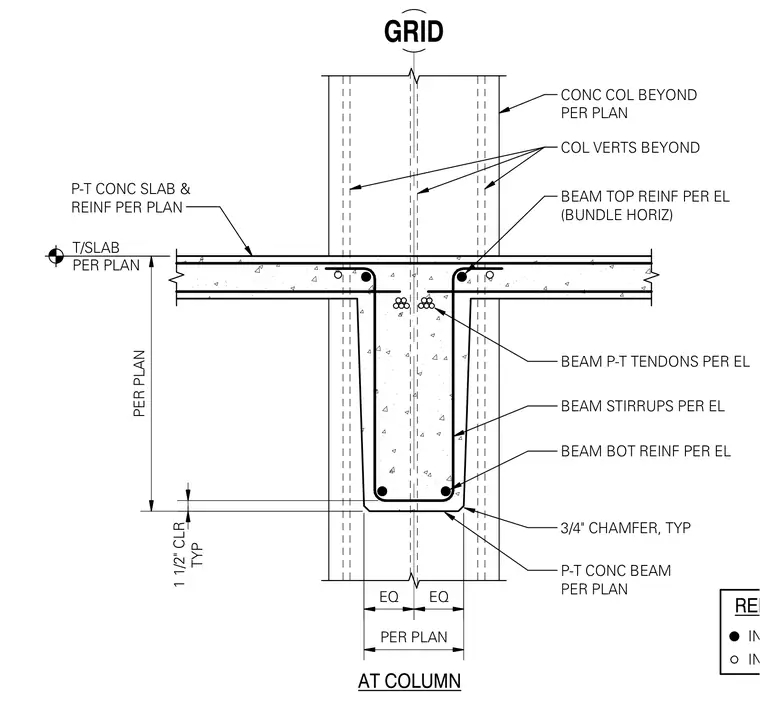

A post-tensioned concrete beam frames into a concrete column, complete with a post-tensioned concrete slab. The beam features top reinforcing steel bundled horizontally, post-tensioning tendons sized per elevation, continuous stirrups, and bottom reinforcing bars. The assembly is centered on a grid line with a typical one-and-a-half-inch concrete clearance and three-quarter-inch chamfers at the beam corners. Column vertical reinforcing bars extend beyond the intersection, aligned per structural plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
