Structural · S-6NYYC

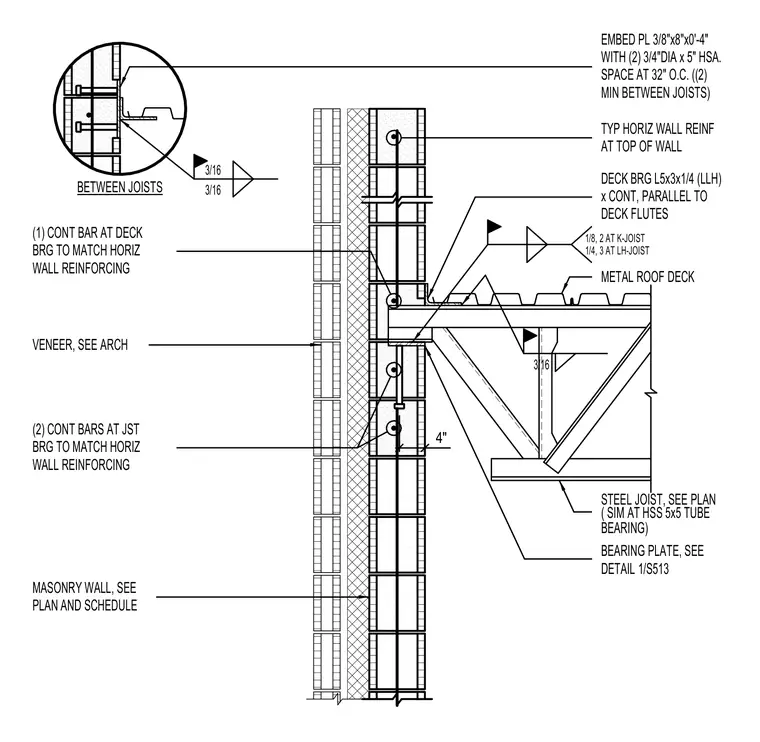

Steel Joist Bearing at Top of Masonry Wall

Materials

Steel Masonry / CMU Metal (misc.)

Elements

Beams Walls Facades / Cladding Roofs Decks Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

HSS Connection Embed Plate

About this detail

A steel joist bears onto a masonry wall utilizing a continuous deck bearing angle spanning parallel to the deck flutes. An embed plate measuring three-eighths by eight by four inches secures with two three-quarter-inch diameter by five-inch heavy duty sleeve anchors spaced at thirty-two inches on center. Continuous horizontal wall reinforcing matching the size of the bars at the deck bearing runs through the top of the wall. A bearing plate is welded to the joist per detail 1/S513, and similar conditions apply at hollow structural section five-by-five tube bearings.
