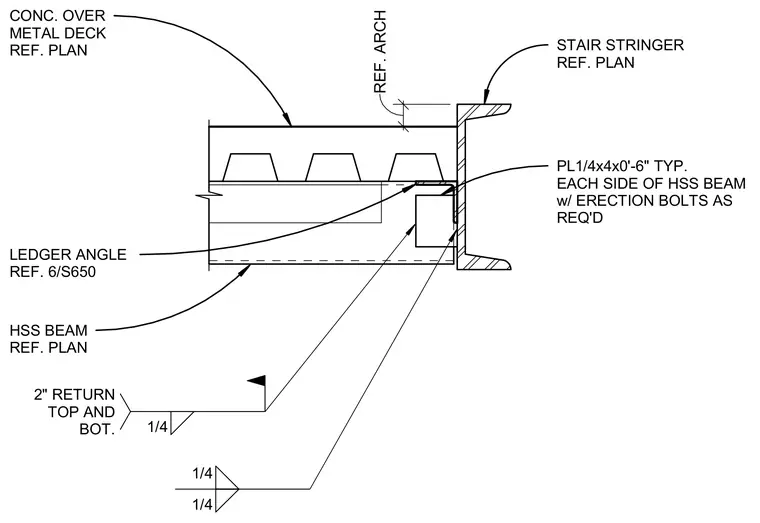

A stair stringer connects to a hollow structural section beam using a 1/4-inch by 4-inch by 0'-6-inch plate on each side of the HSS beam with erection bolts as required. A ledger angle references detail 6 on sheet S650 for additional support below the concrete over metal deck assembly. Fillet welds with a size of 1/4 inch feature a 2-inch return at the top and bottom.
REF. ARCH STAIR STRINGER REF. PLAN PL1/4x4x0'-6" TYP. EACH SIDE OF HSS BEAM w/ ERECTION BOLTS AS REQ'D CONC. OVER METAL DECK REF. PLAN HSS BEAM REF. PLAN 1/4 2" RETURN TOP AND BOT. 1/4 1/4 LEDGER ANGLE REF. 6/S650
