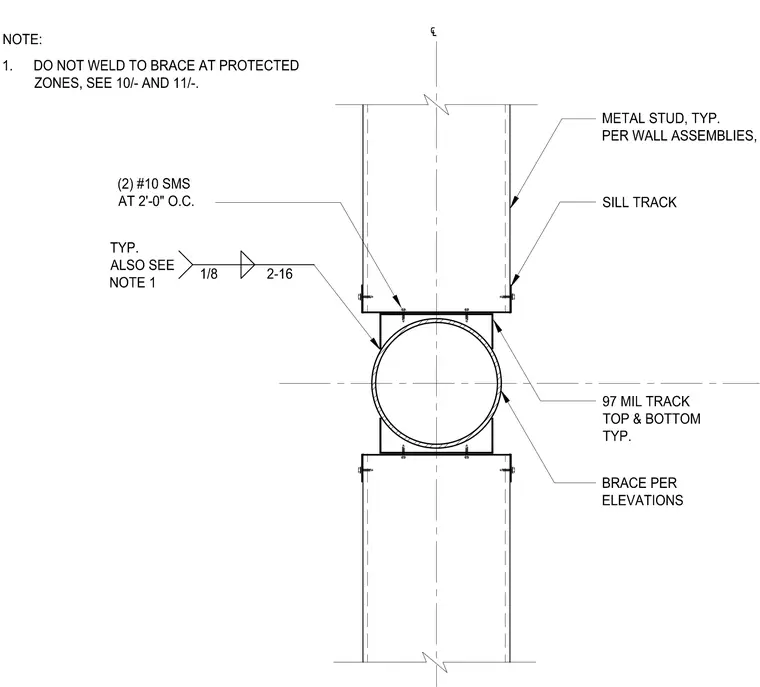

A structural brace spans between two metal stud wall segments, secured to ninety-seven mil tracks at the top and bottom. Metal studs attach to sill tracks with two number ten sheet metal screws spaced at two feet on center. Welding to the brace within protected zones is prohibited per referenced project documents. Brace sizing conforms to structural elevations.
