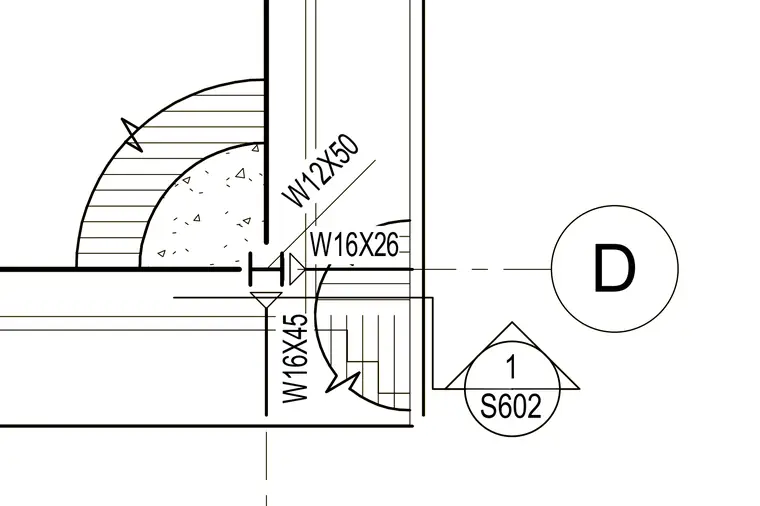

A W12X50 structural steel shape intersects with W16X26 and W16X45 framing members in a structural steel layout. The steel shapes form a framed junction with indicated member sizes. Connection details are referenced to sheet S602.
