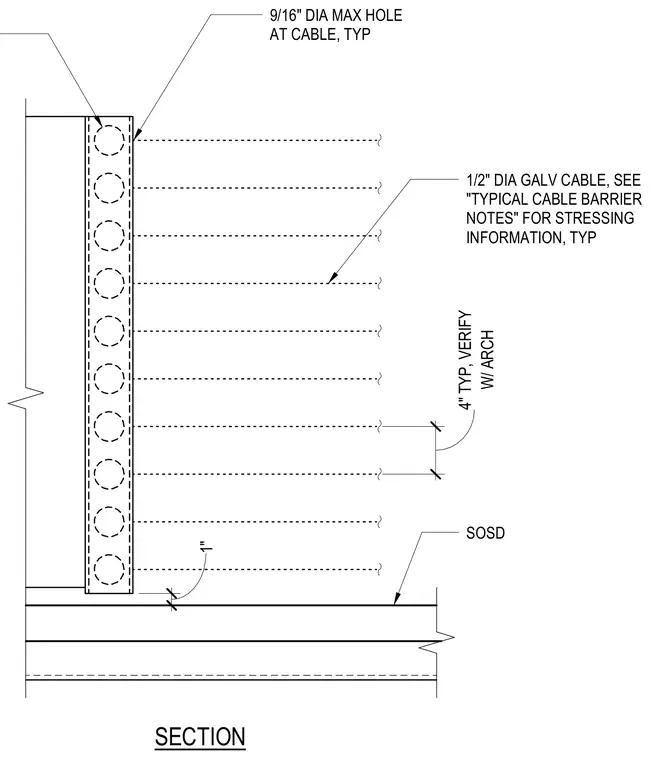

A typical cable barrier assembly features multiple horizontal cable runs above a structural slab. One-half-inch diameter galvanized cables are spaced vertically at four inches typical, with spacing verified with architectural requirements. Nine-sixteenth-inch diameter maximum access holes are provided at the cables. Stressing information is referenced in the typical cable barrier notes.
W/ ARCH 4" TYP, VERIFY SOSD 9/16" DIA MAX HOLE AT CABLE, TYP 1/2" DIA GALV CABLE, SEE "TYPICAL CABLE BARRIER NOTES" FOR STRESSING INFORMATION, TYP SECTION 1"
