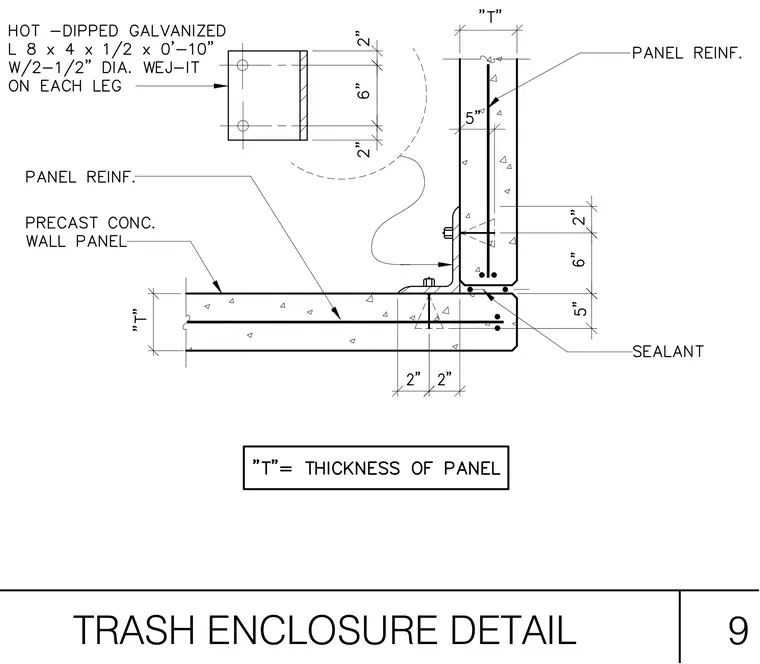

Precast concrete wall panels meet at a 90-degree corner with a sealant joint at the exterior interface. A hot-dipped galvanized 8x4x1/2 inch angle measuring 0 feet 10 inches long connects the panels using two 1/2-inch diameter Wej-It wedge anchors on each leg. The panels contain internal reinforcement and a variable thickness denoted as T.
