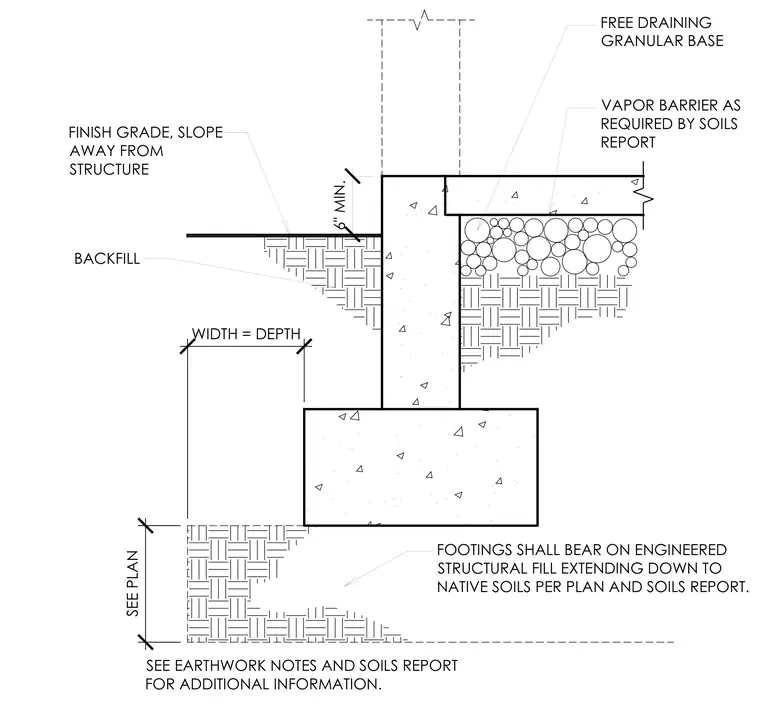

The concrete footing bears on engineered structural fill extending down to native soils sized per plan and the soils report. A stem wall rises from the footing to support a concrete slab-on-grade over a free draining granular base and vapor barrier. Exterior finish grade slopes away from the structure with backfill placed against the stem wall. A minimum six-inch clearance is maintained from finish grade to the top of the foundation wall.
FINISH GRADE, SLOPE AWAY FROM STRUCTURE BACKFILL VAPOR BARRIER AS REQUIRED BY SOILS REPORT FREE DRAINING GRANULAR BASE WIDTH = DEPTH FOOTINGS SHALL BEAR ON ENGINEERED STRUCTURAL FILL EXTENDING DOWN TO NATIVE SOILS PER PLAN AND SOILS REPORT. SEE PLAN SEE EARTHWORK NOTES AND SOILS REPORT FOR ADDITIONAL INFORMATION. 6" MIN.
