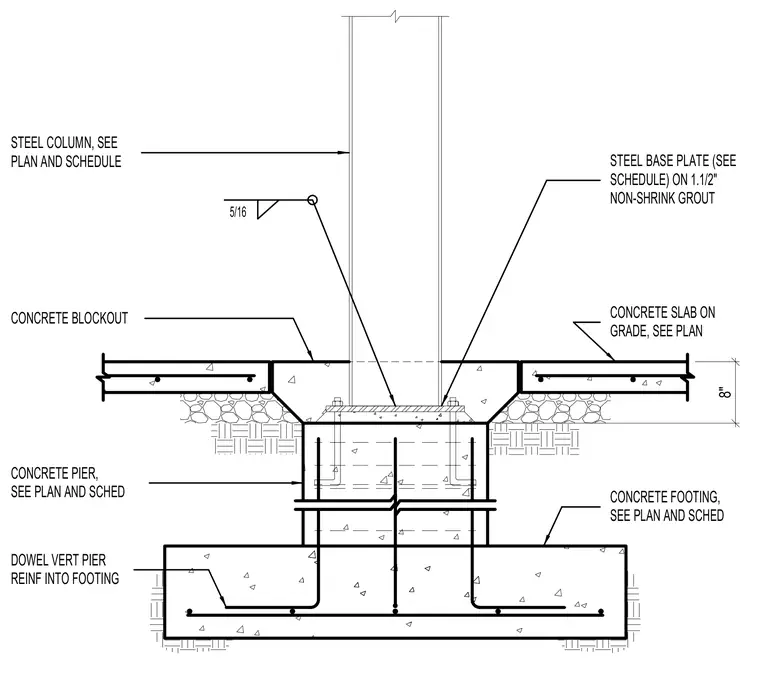

A steel column connects to a steel base plate anchored to a concrete pier and footing. The base plate rests on a one and one-half inch layer of non-shrink grout atop the concrete pier. A concrete blockout surrounds the column base within the surrounding eight-inch concrete slab on grade. Vertical pier reinforcing dowels extend down and hook into the concrete footing. A five-sixteenths inch fillet weld secures the column to the base plate.
CONCRETE BLOCKOUT 5/16 CONCRETE SLAB ON GRADE, SEE PLAN STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT DOWEL VERT PIER REINF INTO FOOTING CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE PIER, SEE PLAN AND SCHED STEEL COLUMN, SEE PLAN AND SCHEDULE 8"
