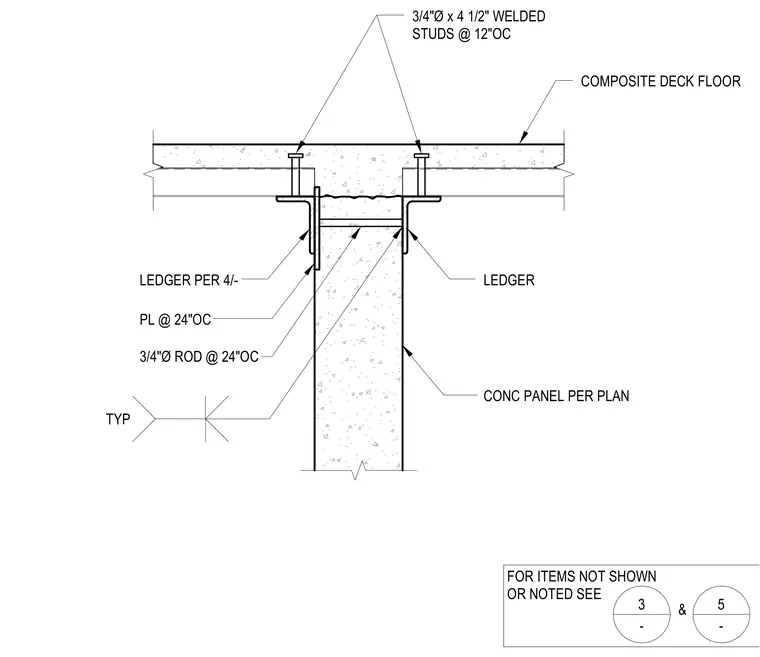

A composite deck floor bears on steel ledgers attached to a concrete panel per plan. Three-quarter-inch diameter by four-and-one-half-inch long welded studs are spaced at twelve inches on center into the composite deck floor. Plates and three-quarter-inch diameter rods are spaced at twenty-four inches on center to anchor the connection.
TYP 3 - 5 - 3/4"Ø x 4 1/2" WELDED STUDS @ 12"OC COMPOSITE DECK FLOOR LEDGER CONC PANEL PER PLAN FOR ITEMS NOT SHOWN OR NOTED SEE & LEDGER PER 4/- PL @ 24"OC 3/4"Ø ROD @ 24"OC
