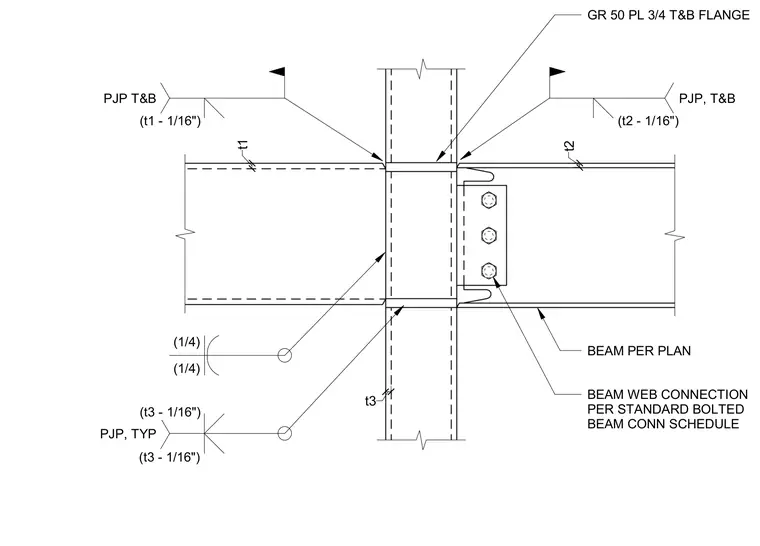

Steel beams frame into a hollow structural section column with three-quarter inch Grade 50 top and bottom flange plates welded via partial-joint-penetration grooves. The beam webs connect to the column with standard bolted beam connections. Fillet welds reinforce the plate and web assemblies where specified by thickness parameters.
BEAM PER PLAN GR 50 PL 3/4 T&B FLANGE PJP T&B PJP, TYP (1/4) (1/4) t1 (t1 - 1/16") t3 (t3 - 1/16") PJP, T&B (t2 - 1/16") BEAM WEB CONNECTION PER STANDARD BOLTED BEAM CONN SCHEDULE (t3 - 1/16") t2
