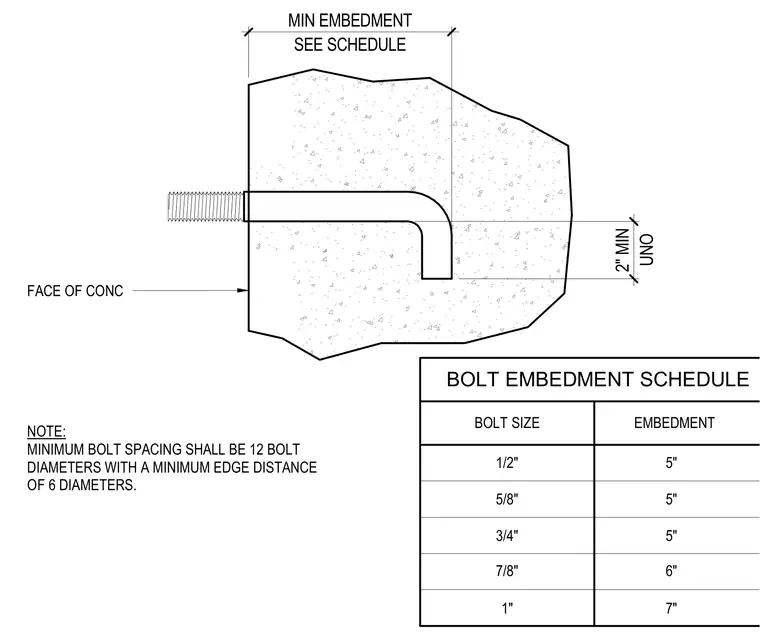

An anchor bolt embedded in concrete specifies required embedment depths corresponding to bolt sizes ranging from one-half inch to one inch in diameter. A companion table details the minimum embedment depth for each bolt size, establishing requirements from five inches up to seven inches. Minimum bolt spacing is twelve bolt diameters with a minimum edge distance of six diameters. A two-inch minimum embedment applies unless otherwise noted.
BOLT EMBEDMENT SCHEDULE 1/2" 3/4" 5/8" 7/8" BOLT SIZE 1" 7" 5" 6" 5" 5" EMBEDMENT FACE OF CONC NOTE: MINIMUM BOLT SPACING SHALL BE 12 BOLT DIAMETERS WITH A MINIMUM EDGE DISTANCE OF 6 DIAMETERS. SEE SCHEDULE MIN EMBEDMENT UNO 2" MIN
