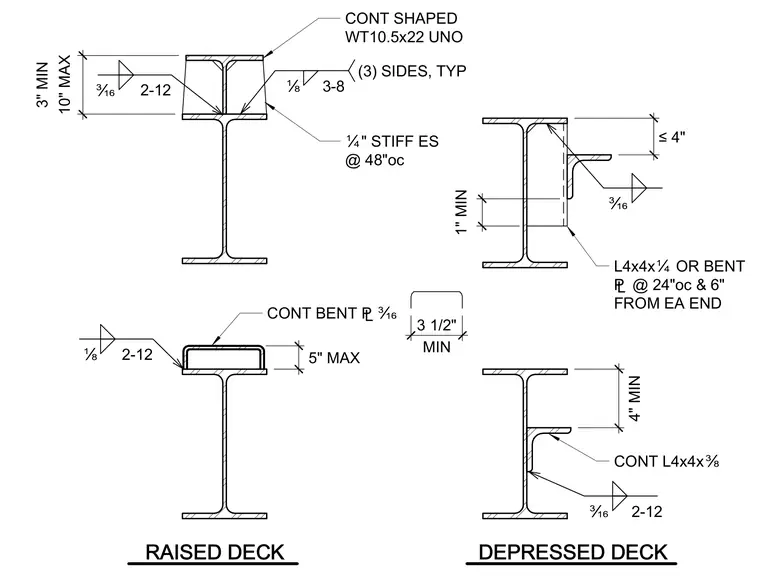

A continuous shaped WT10.5x22 member is supported by a wide-flange beam, featuring quarter-inch stiffener plates on each side at forty-eight inches on center and three-sixteenth-inch fillet welds welded on three sides. A continuous bent plate of three-sixteenths inch thickness is welded to the top flange with a one-eighth-inch fillet weld at two inches to twelve inches spacing. Additional support conditions use continuous L4x4x3/8 angles or L4x4x1/4 plates bent at twenty-four inches on center with six inches from each end, welded with three-sixteenth-inch fillet welds.
É 2-12 CONT BENT £Ê MIN 3 1/2" Ê 2-12 CONT SHAPED WT10.5x22 UNO Ë" STIFF ES @ 48"oc Ê 2-12 4" MIN Ê Ä 4" L4x4xË OR BENT £ @ 24"oc & 6" FROM EA END 1" MIN 10" MAX 3" MIN RAISED DECK DEPRESSED DECK 5" MAX CONT L4x4xÍ É 3-8 (3) SIDES, TYP
