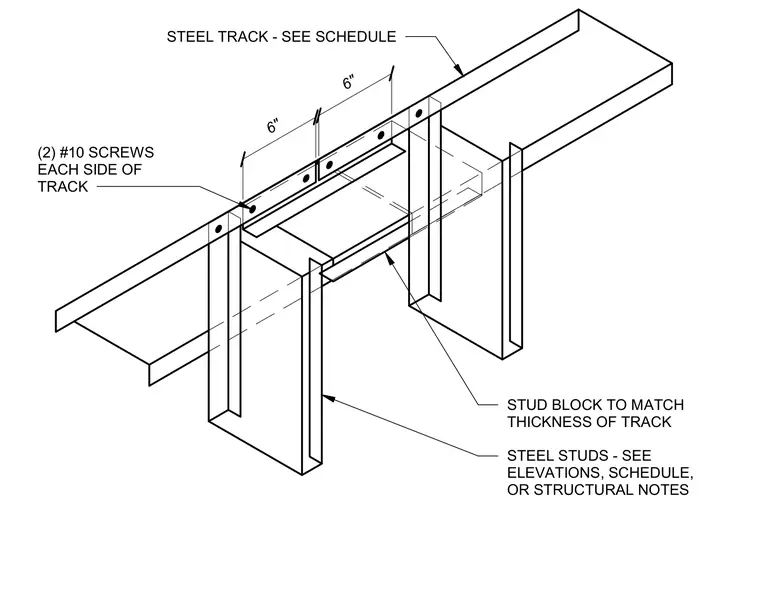

Cold-formed steel studs connect to a continuous steel track sized per project schedules. A stud block matching the thickness of the track is installed between the vertical framing members. Two number 10 screws fasten each side of the track to secure the assembly.
6" 6" STUD BLOCK TO MATCH THICKNESS OF TRACK (2) #10 SCREWS EACH SIDE OF TRACK STEEL TRACK - SEE SCHEDULE STEEL STUDS - SEE ELEVATIONS, SCHEDULE, OR STRUCTURAL NOTES
