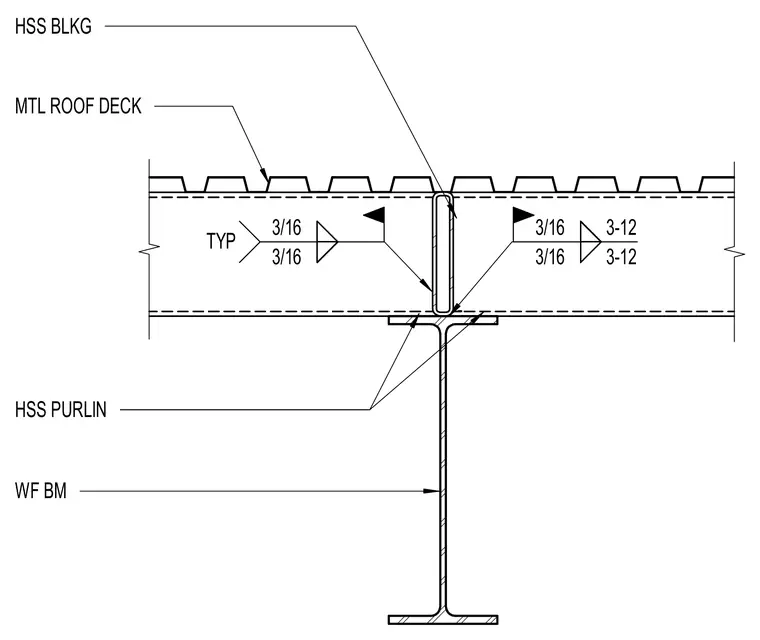

A metal roof deck bears directly on a hollow structural section purlin, which is welded to the top flange of a wide flange beam. A hollow structural section blocking member is positioned between the purlins with fillet welds specified at three-sixteenths inch typical. The purlin-to-beam connection utilizes three-sixteenths inch fillet welds spaced at twelve inches on center.
