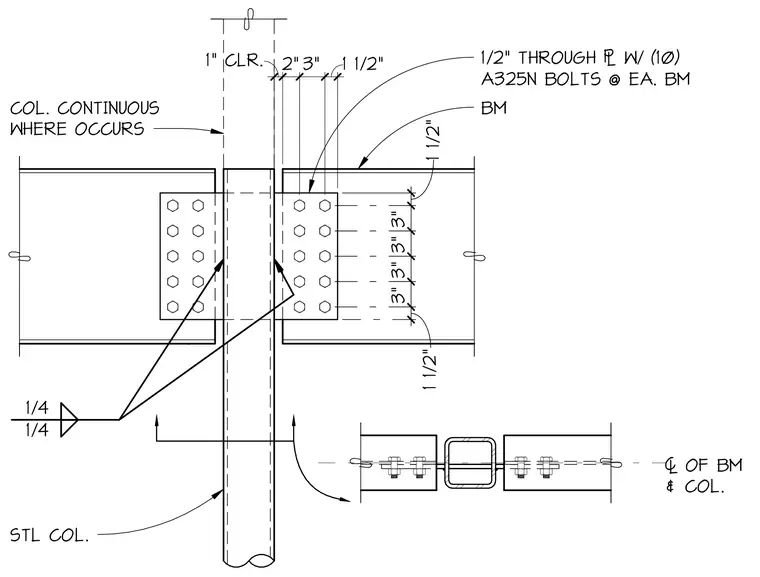

A collector beam connects to a hollow structural section steel column using a one-half-inch through-plate fastened with ten A325N bolts at each beam. The connection utilizes quarter-inch fillet welds and maintains a one-inch clearance from the column centerline. The structural steel column remains continuous where it occurs, aligned with the beam centerline.
1/2" THROUGH W/ (10) A325N BOLTS @ EA. BM STL COL. BM 1/4 1/4 1 1/2" 3" 3" 3" 3" 1 1/2" 1" CLR. 2" 3" 1 1/2" 0 OF BM & COL. COL. CONTINUOUS WHERE OCCURS
