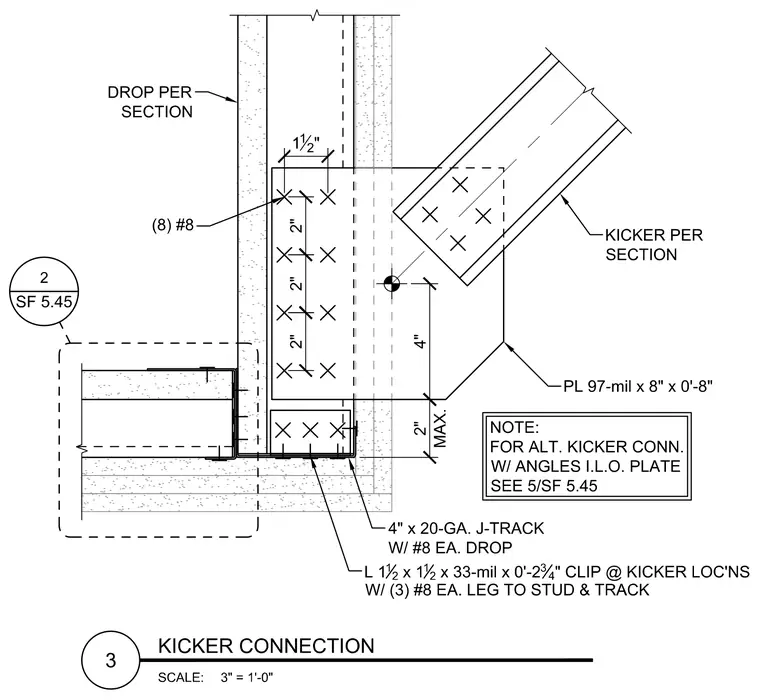

An angled structural kicker per section connects to a 97-mil plate measuring 8 inches by 0 feet 8 inches, fastened with eight number 8 fasteners arranged in vertical rows spaced at 2 inches with a 1-half inch edge distance. The plate secures to a wall assembly comprising a 4-inch by 20-gauge J-track with drops per section secured by number 8 fasteners each, and a 1-half inch by 1-half inch by 33-mil clip measuring 0 feet 2-3 quarters inches at kicker locations fastened with three number 8 fasteners each to stud and track. A drawing note directs users to see detail 5 on sheet SF 5.45 for alternate kicker connections using angles instead of plates.
