A structural steel beam supports a stair hanger provided by the stair contractor with an eccentric load path. A minimum one-quarter-inch thick stiffener plate is welded to the beam web to handle local stresses. A transverse angle with a minimum length of sixteen inches and minimum size of L3x3x1/4 is anchored to the underside of the floor deck. A kicker assembly is provided by the stair contractor when the eccentricity exceeds one inch, with locations coordinated across all trades.

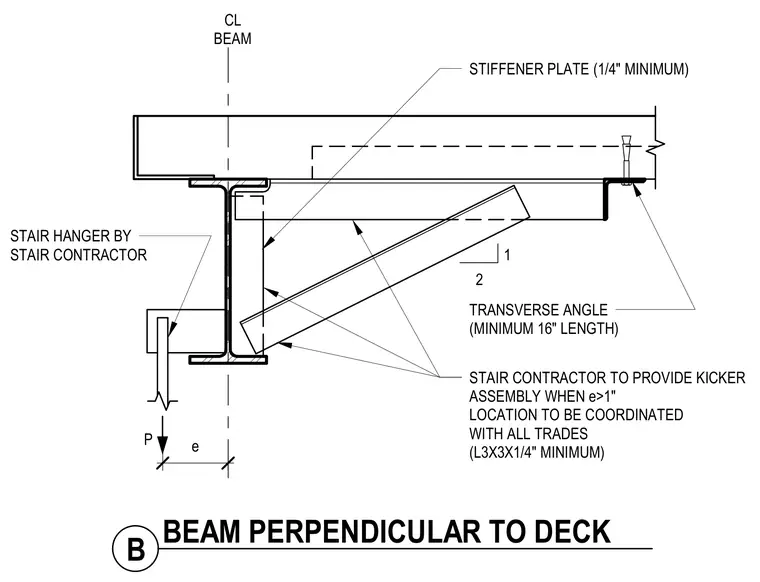

TRANSVERSE ANGLE (MINIMUM 16" LENGTH) P e 1 2 CL BEAM STAIR CONTRACTOR TO PROVIDE KICKER ASSEMBLY WHEN e>1" LOCATION TO BE COORDINATED WITH ALL TRADES (L3X3X1/4" MINIMUM) STIFFENER PLATE (1/4" MINIMUM) STAIR HANGER BY STAIR CONTRACTOR B BEAM PERPENDICULAR TO DECK
