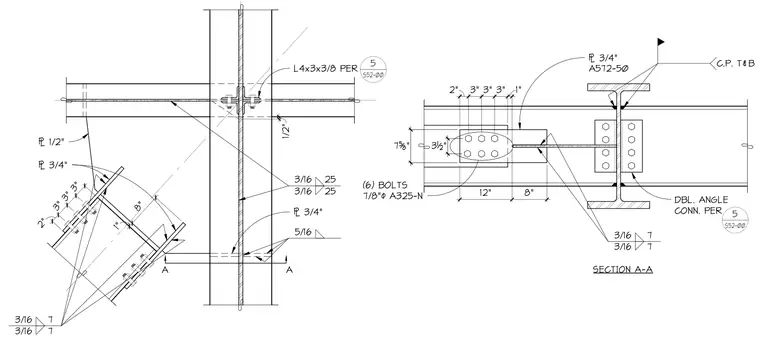

A structural steel beam connects to a supporting column using double angles fabricated from L4x3x3/8 structural steel. The connection utilizes six 7/8-inch diameter A325-N high-strength bolts distributed across spaced intervals with 3/4-inch A572-50 plates. Fillet welds of 3/16-inch and 5/16-inch sizes secure the plate and angle assemblies to the column flange and web elements. Section A-A provides plan and elevation views detailing the bolt hole spacings, edge distances, and plate dimensions.
12" 8" 3½" 2" 3" 3" 3" 1" 3/16 7 3/16 7 C.P. T&B SECTION A-A (6) BOLTS 7/8"3 A325-N 3/4" A572-50 DBL. ANGLE CONN. PER 5 S52-00 74" 1/2" 8" 1" 2" 3" 3" 3" A A L4x3x3/8 PER 5 S52-00 3/16 25 3/16 25 5/16 1/2" 3/4" 3/16 7 3/16 7 3/4"
