An existing HSS12x12 brace connects with three-quarter-inch top and bottom plates and three-quarter-inch gusset plates framing into a concrete-encased structural steel column along gridline C-9. Minimum clearances of two inches and three inches are maintained around the connection plates, with a minimum one-foot dimension indicated for the gusset assembly. Additional information is referenced on detail 13/SR-18-413B.

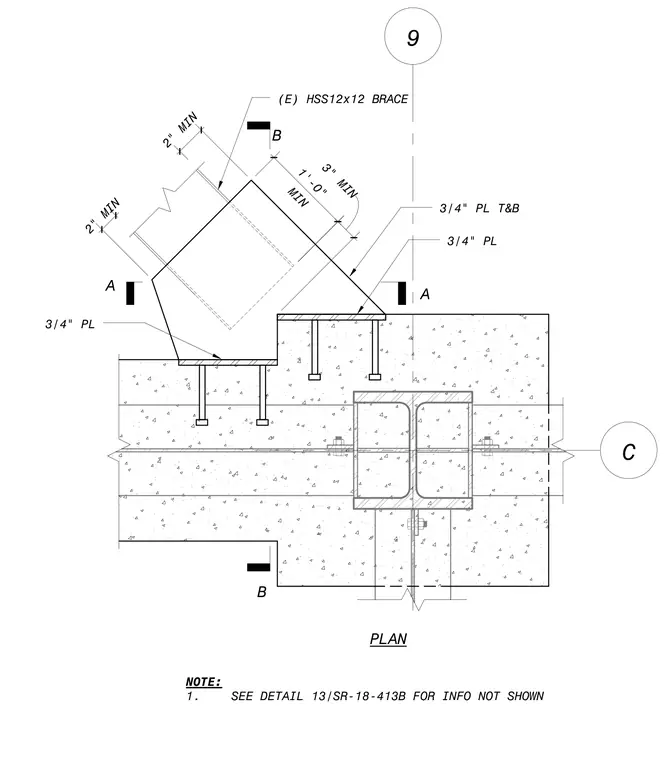

PLAN 9 C (E) HSS12x12 BRACE 3/4" PL T&B MIN 1'-0" A A B B 3/4" PL 3/4" PL NOTE: 1. SEE DETAIL 13/SR-18-413B FOR INFO NOT SHOWN 2" MIN 3" MIN 2" MIN
