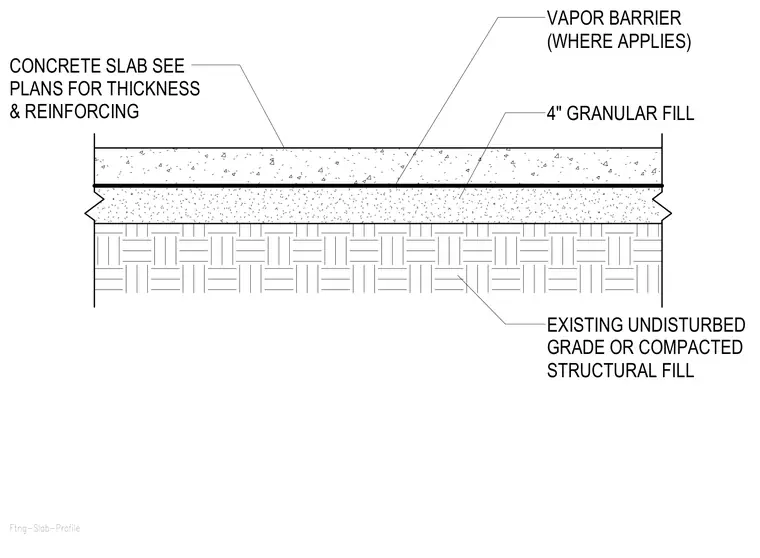

A concrete slab rests on a four-inch layer of granular fill supported by existing undisturbed grade or compacted structural fill. A vapor barrier is installed directly beneath the slab where applicable. Thickness and reinforcing for the concrete slab are sized per structural plans.
Ftng-Slab-Profile CONCRETE SLAB SEE PLANS FOR THICKNESS & REINFORCING 4" GRANULAR FILL VAPOR BARRIER (WHERE APPLIES) EXISTING UNDISTURBED GRADE OR COMPACTED STRUCTURAL FILL
