Typical Steel Beam and Deck Bearing Detail

Materials

Steel Masonry / CMU Metal (misc.)

Elements

Beams Walls Roofs Decks Anchors / Embeds Connections / Plates Reinforcing

Connections

Embed Plate

About this detail

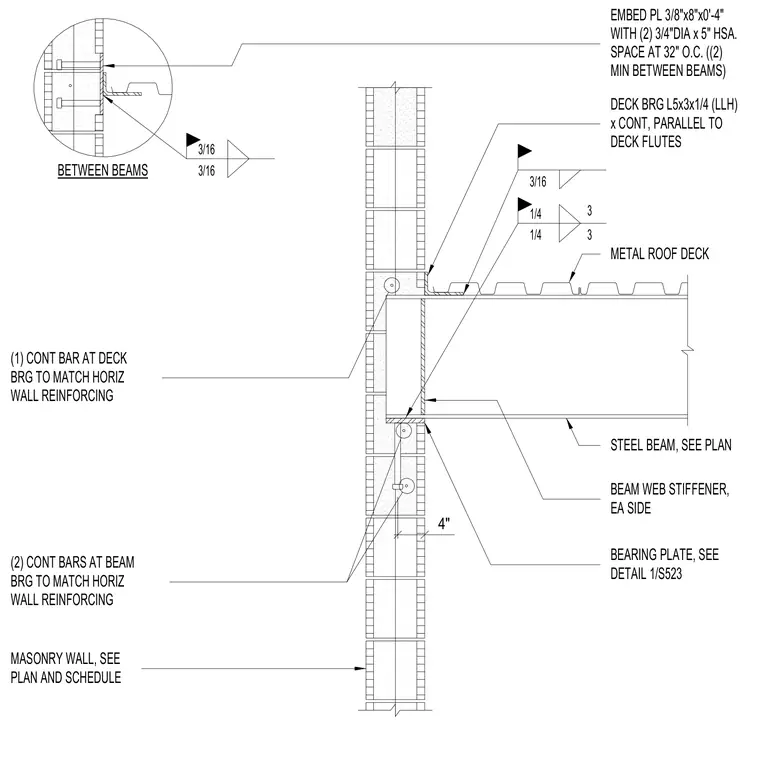

A steel beam bears onto a masonry wall via a bearing plate detailed per Detail 1/S523, with beam web stiffeners welded to each side of the web. An embed plate measuring three-eighths by eight inches by four inches long is anchored into the wall using two three-quarter-inch diameter by five-inch HSA anchors spaced at thirty-two inches on center, with a minimum of two anchors between beams. A continuous angle measuring five by three by one-quarter inch supports the metal roof deck parallel to the deck flutes. Continuous horizontal reinforcing bars match the wall reinforcement at both the beam and deck bearing locations.
