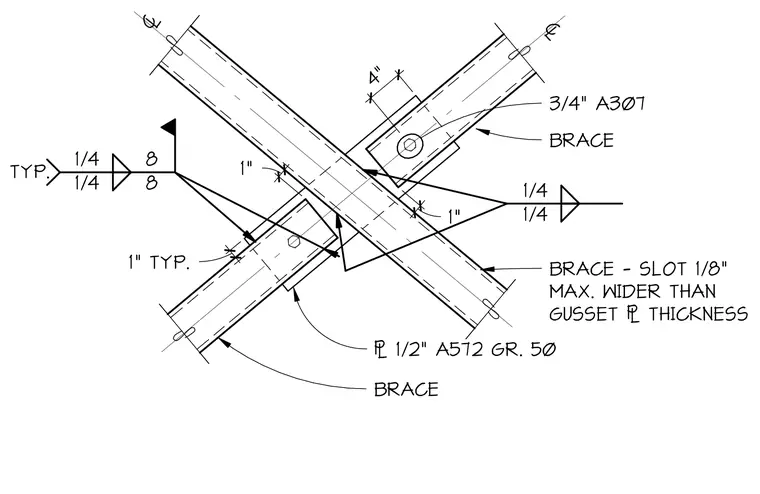

This structural connection detail features intersecting braces tied together with a one-half inch thick A572 Grade 50 gusset plate. The braces are fastened using three-quarter inch diameter A307 bolts and detailed with a slot width one-eighth inch maximum wider than the gusset plate thickness. Fillet welds of one-quarter inch size are specified typically at the connection joints, maintaining a one inch typical clearance from ends. Centerlines are established for alignment across the intersecting members.
1" * 1/4 8 1/4 8 TYP. ' 1/2" A572 GR. 50 3/4" A307 BRACE - SLOT 1/8" MAX. WIDER THAN GUSSET ' THICKNESS 1/4 1/4 1" 4" BRACE BRACE 1" TYP. *
