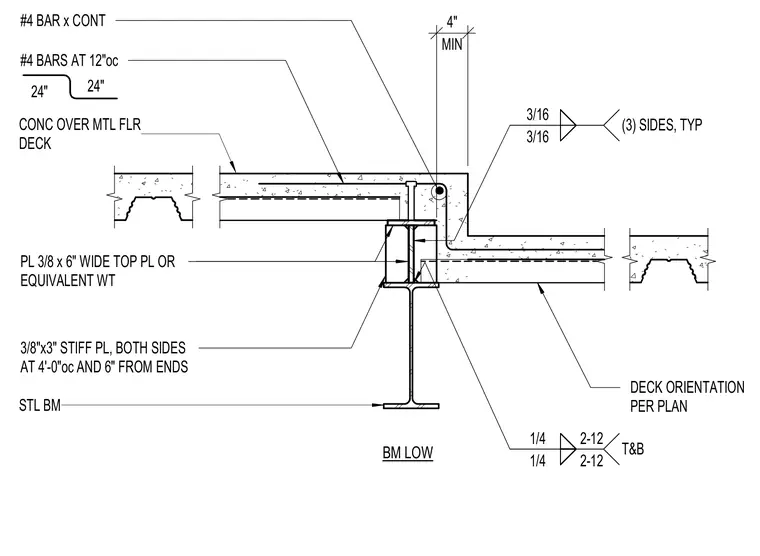

Concrete over metal floor deck bears on a steel beam with a minimum four-inch bearing. Three-eighths-inch by three-inch stiffener plates are welded to both sides at four feet on center and six inches from the ends. A three-eighths-inch by six-inch wide top plate or equivalent wide-flange beam is provided. Continuous number four reinforcing bars run longitudinally with number four bars at twelve inches on center. Fillet welds of varying sizes secure the steel connection elements.
CONC OVER MTL FLR DECK STL BM MIN 4" 3/8"x3" STIFF PL, BOTH SIDES AT 4'-0"oc AND 6" FROM ENDS DECK ORIENTATION PER PLAN PL 3/8 x 6" WIDE TOP PL OR EQUIVALENT WT BM LOW #4 BARS AT 12"oc 24" 24" #4 BAR x CONT 1/4 1/4 2-12 2-12 T&B 3/16 3/16 (3) SIDES, TYP
