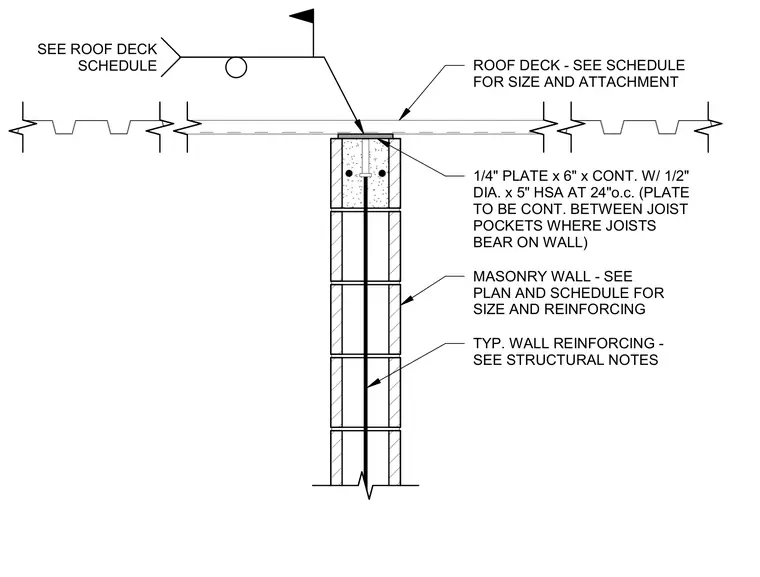

A continuous roof deck bears directly on a steel bearing plate anchored to the top of a masonry wall. The assembly consists of a quarter-inch by six-inch continuous plate anchored with one-half-inch diameter by five-inch head stud anchors at twenty-four inches on center. The bearing plate is continuous between joist pockets where joists bear on the wall. The masonry wall includes vertical reinforcing sized per structural notes and schedules.
1/4" PLATE x 6" x CONT. W/ 1/2" DIA. x 5" HSA AT 24"o.c. (PLATE TO BE CONT. BETWEEN JOIST POCKETS WHERE JOISTS BEAR ON WALL) ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT TYP. WALL REINFORCING - SEE STRUCTURAL NOTES MASONRY WALL - SEE PLAN AND SCHEDULE FOR SIZE AND REINFORCING SEE ROOF DECK SCHEDULE
