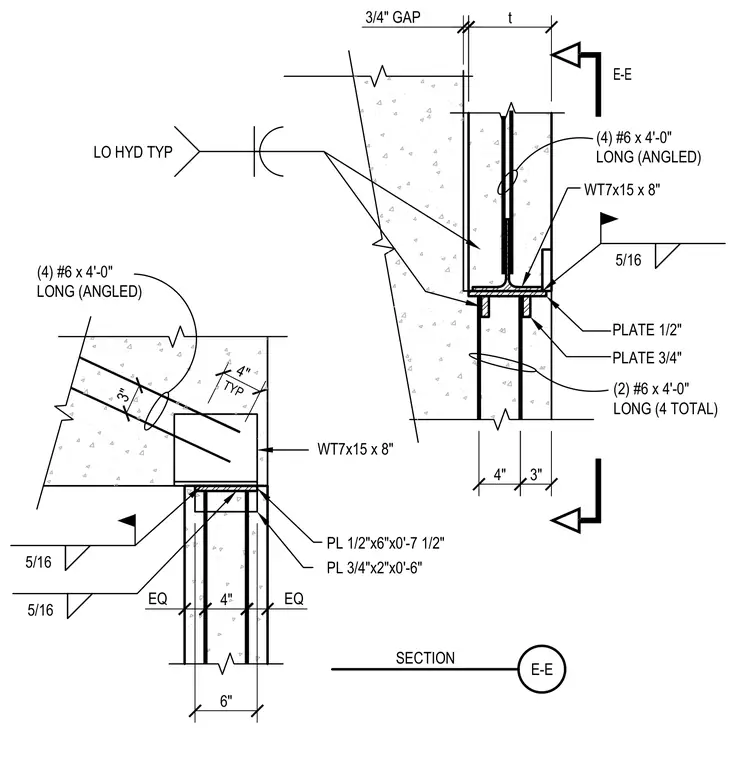

A concrete lintel connection utilizes a WT7x15 by 8-inch structural tee. The tee is welded with a five-sixteenths-inch fillet weld to a half-inch by 6-inch by 0-foot 7.5-inch plate and a three-quarter-inch by 2-inch by 0-foot 6-inch plate. Angled reinforcing bars consisting of four number 6 bars, 4 feet 0 inches long, tie into the assembly alongside two number 6 bars, 4 feet 0 inches long total.
3" 4" LO HYD TYP 6" EQ EQ 4" 4" 3" TYP 5/16 5/16 E-E SECTION E-E 5/16 PLATE 1/2" PLATE 3/4" (2) #6 x 4'-0" LONG (4 TOTAL) (4) #6 x 4'-0" LONG (ANGLED) WT7x15 x 8" (4) #6 x 4'-0" LONG (ANGLED) WT7x15 x 8" PL 1/2"x6"x0'-7 1/2" PL 3/4"x2"x0'-6" 3/4" GAP t
