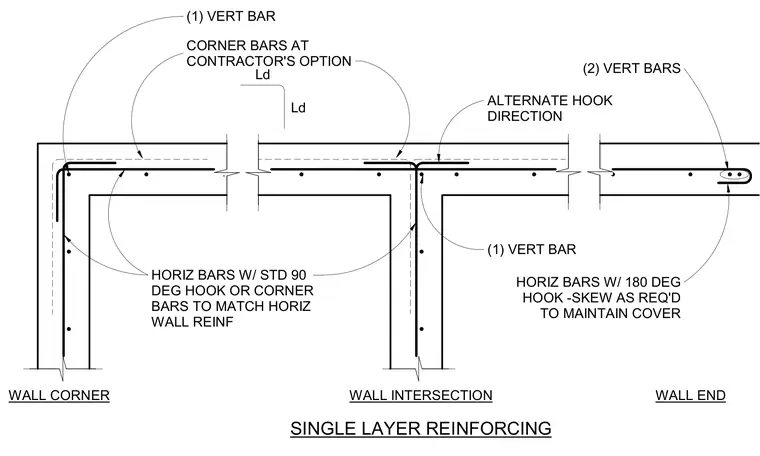

Single layer reinforcing configurations for concrete wall corners, intersections, and ends. Horizontal bars feature standard 90-degree hooks or optional corner bars at wall corners, with development length $L_d$ provided. Wall intersections incorporate continuous horizontal bars with alternate hook directions and one vertical bar. Wall ends terminate with horizontal bars bent in a 180-degree hook around two vertical bars, skewed as required to maintain concrete cover.
WALL CORNER WALL INTERSECTION WALL END SINGLE LAYER REINFORCING (1) VERT BAR CORNER BARS AT CONTRACTOR'S OPTION Ld Ld HORIZ BARS W/ STD 90 DEG HOOK OR CORNER BARS TO MATCH HORIZ WALL REINF ALTERNATE HOOK DIRECTION (2) VERT BARS (1) VERT BAR HORIZ BARS W/ 180 DEG HOOK -SKEW AS REQ'D TO MAINTAIN COVER
