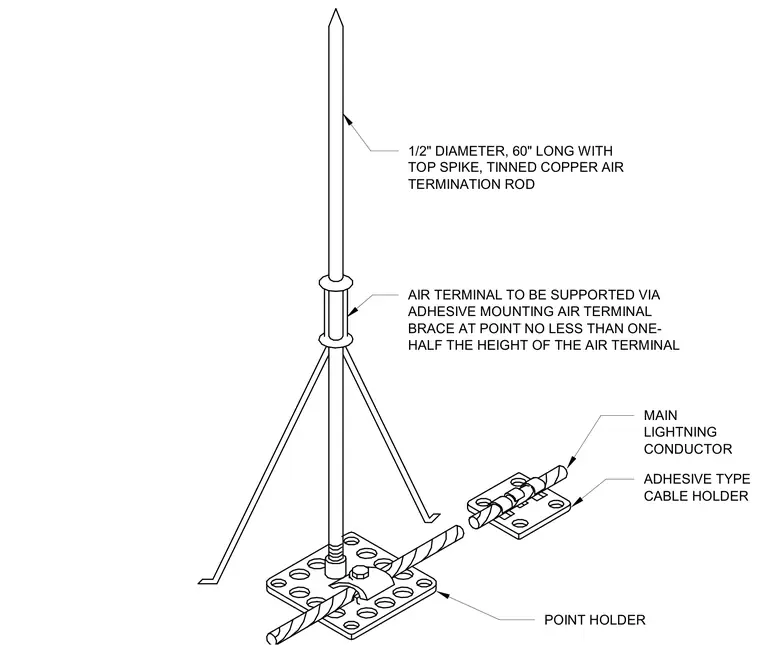

A tinned copper air termination rod measuring one-half inch in diameter and sixty inches in length features a top spike and is secured to a perforated adhesive mounting base plate. The rod is supported by an air terminal brace attached at a point no less than one-half the height of the terminal. A main lightning conductor runs through a point holder at the base and is secured along the roof surface using adhesive type cable holders.
1/2" DIAMETER, 60" LONG WITH TOP SPIKE, TINNED COPPER AIR TERMINATION ROD AIR TERMINAL TO BE SUPPORTED VIA ADHESIVE MOUNTING AIR TERMINAL BRACE AT POINT NO LESS THAN ONE- HALF THE HEIGHT OF THE AIR TERMINAL MAIN LIGHTNING CONDUCTOR ADHESIVE TYPE CABLE HOLDER POINT HOLDER
