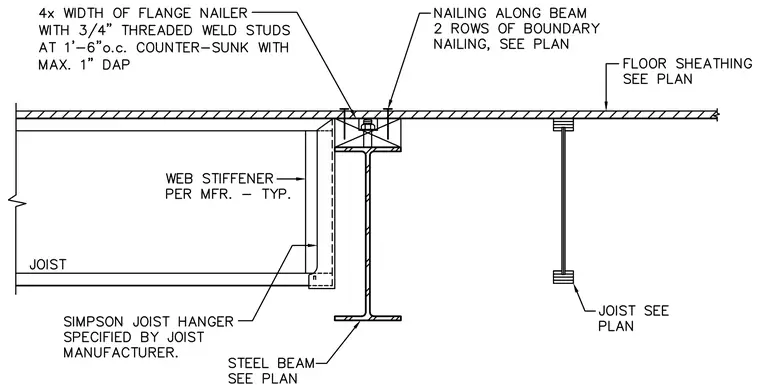

A wood joist connects to a steel beam using a Simpson joist hanger specified by the manufacturer, paired with a web stiffener per manufacturer requirements. The joist hanger assembly supports floor sheathing over a four-times-width flange nailer secured with three-quarter-inch threaded weld studs at one foot six inches on center, countersunk with a maximum one-inch dap. Boundary nailing along the beam requires two rows specified per plan. Standard floor sheathing spans across the assembly.
