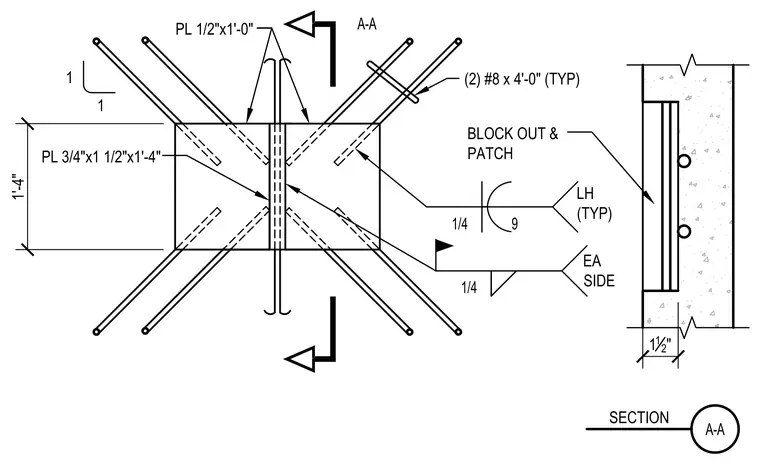

Precast concrete panels connect using embedded half-inch plates welded with quarter-inch fillets on each side and reinforced by two number eight bars measuring four feet long per side. Additional anchorage is provided by a three-quarter-inch by one-and-a-half-inch by one-foot-four-inch steel plate embedded within the blockout area. Blockouts are filled and patched after connection assembly. Section A-A shows the concrete panel thickness and recess profile.
1 12 " 1'-4" LH (TYP) EA SIDE 1/4 1/4 9 A-A A-A SECTION 1 1 PL 3/4"x1 1/2"x1'-4" PL 1/2"x1'-0" (2) #8 x 4'-0" (TYP) BLOCK OUT & PATCH
