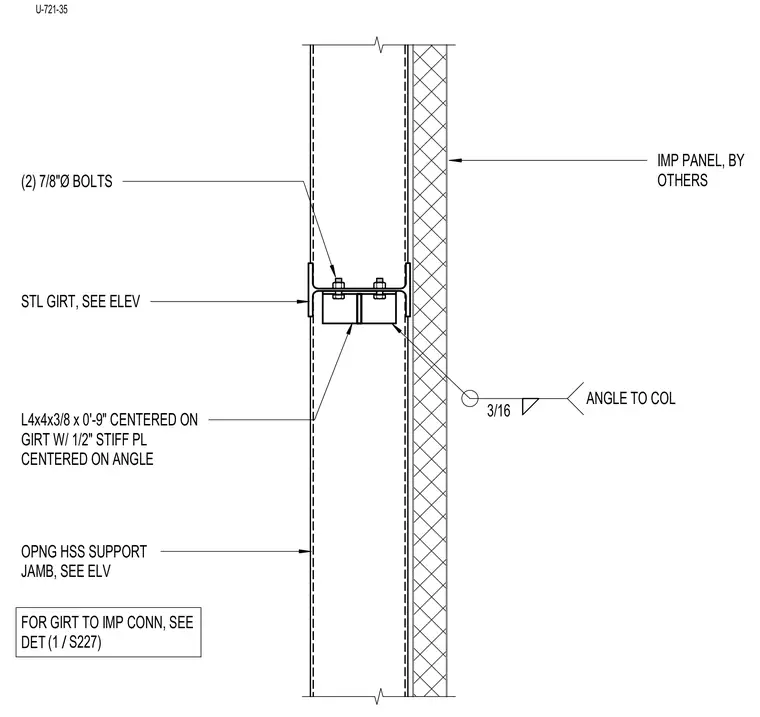

The steel girt is supported by a hollow structural section opening support jamb and connected using two 7/8 inch diameter bolts through a L4x4x3/8 angle measuring 0 feet 9 inches long. A 1/2 inch stiffener plate is centered on the angle, which is welded to the column with a 3/16 inch fillet weld. An insulated metal panel assembly is mounted on the exterior face by others.
IMP PANEL, BY OTHERS 3/16 ANGLE TO COL FOR GIRT TO IMP CONN, SEE DET / (1 S227) OPNG HSS SUPPORT JAMB, SEE ELV STL GIRT, SEE ELEV (2) 7/8"Ø BOLTS L4x4x3/8 x 0'-9" CENTERED ON GIRT W/ 1/2" STIFF PL CENTERED ON ANGLE U-721-35
