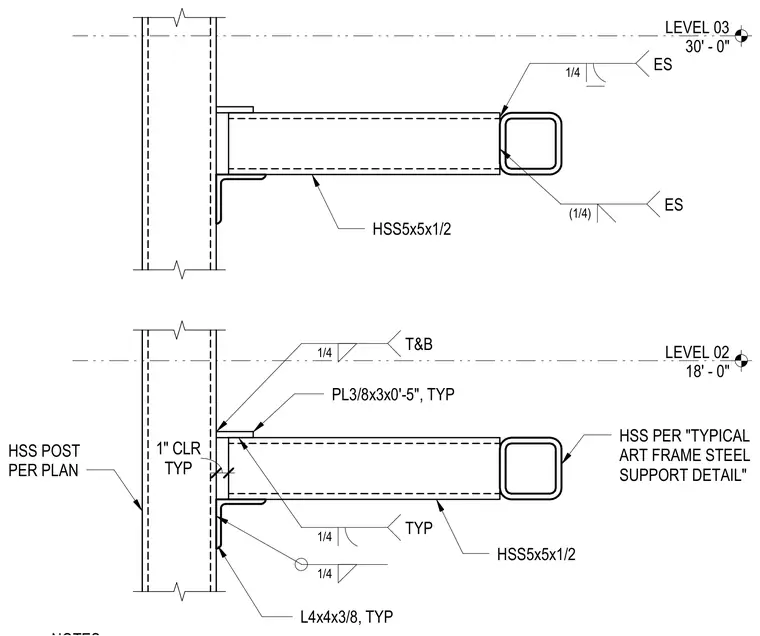

An HSS5x5x1/2 structural steel member connects to a vertical hollow structural section post with a one-inch clearance gap maintained at the column face. An L4x4x3/8 seat angle welded beneath the horizontal member provides vertical support, supplemented by a 3/8-inch thick top plate welded top and bottom. Fillet welds of 1/4-inch size secure the connection plates and angles to the supporting post and framing members.
LEVEL 03 30' - 0" LEVEL 02 18' - 0" T&B 1/4 PL3/8x3x0'-5", TYP HSS PER "TYPICAL ART FRAME STEEL SUPPORT DETAIL" HSS5x5x1/2 TYP 1/4 1/4 L4x4x3/8, TYP HSS POST PER PLAN HSS5x5x1/2 ES (1/4) ES 1/4 TYP 1" CLR
